Settlement & landscape · Danling, Sichuan
Local earth,
shared making
At Xingfu Ridge, Weibing Liu worked with local residents to make earth bricks for a guesthouse cluster beside Xingfu Ancient Village. Small buildings follow the hillside, while a wastewater system combines anaerobic treatment with a constructed wetland.

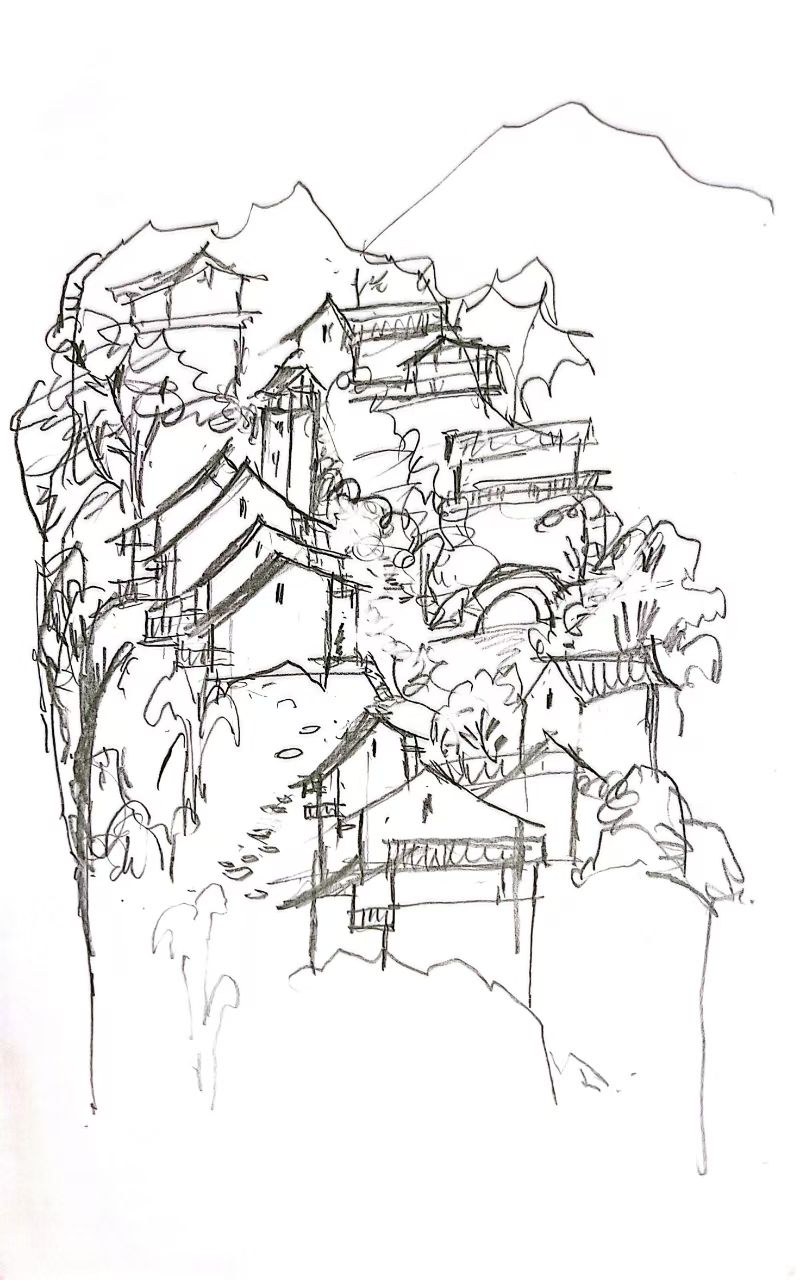

Concept sketch
The concept sketch brings pitched-roof buildings, paths and vegetation into a shared hillside setting.
It provides a spatial introduction to the project’s work with local earth bricks, resident participation and wastewater treatment within the landscape.

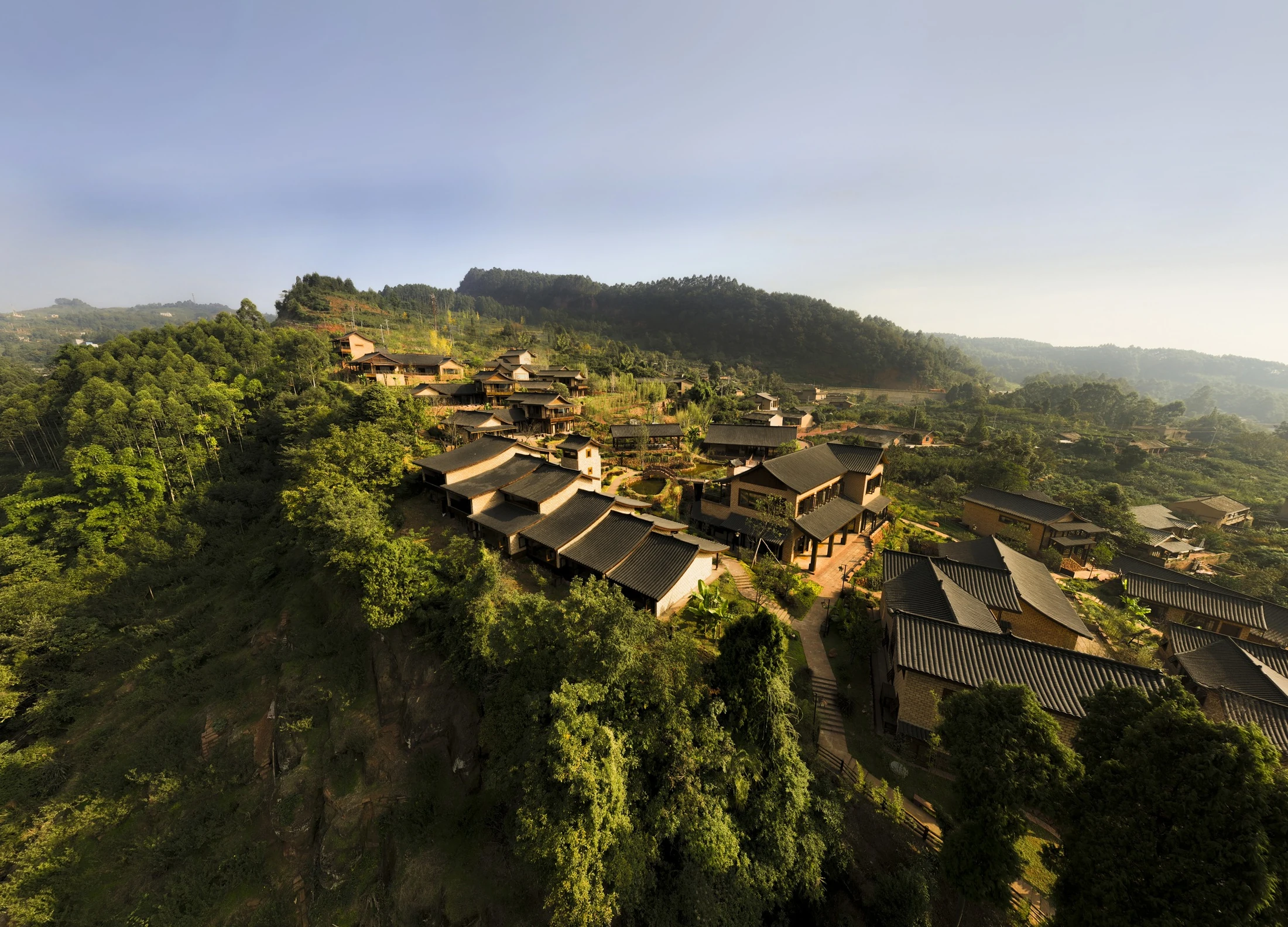

Place & scale

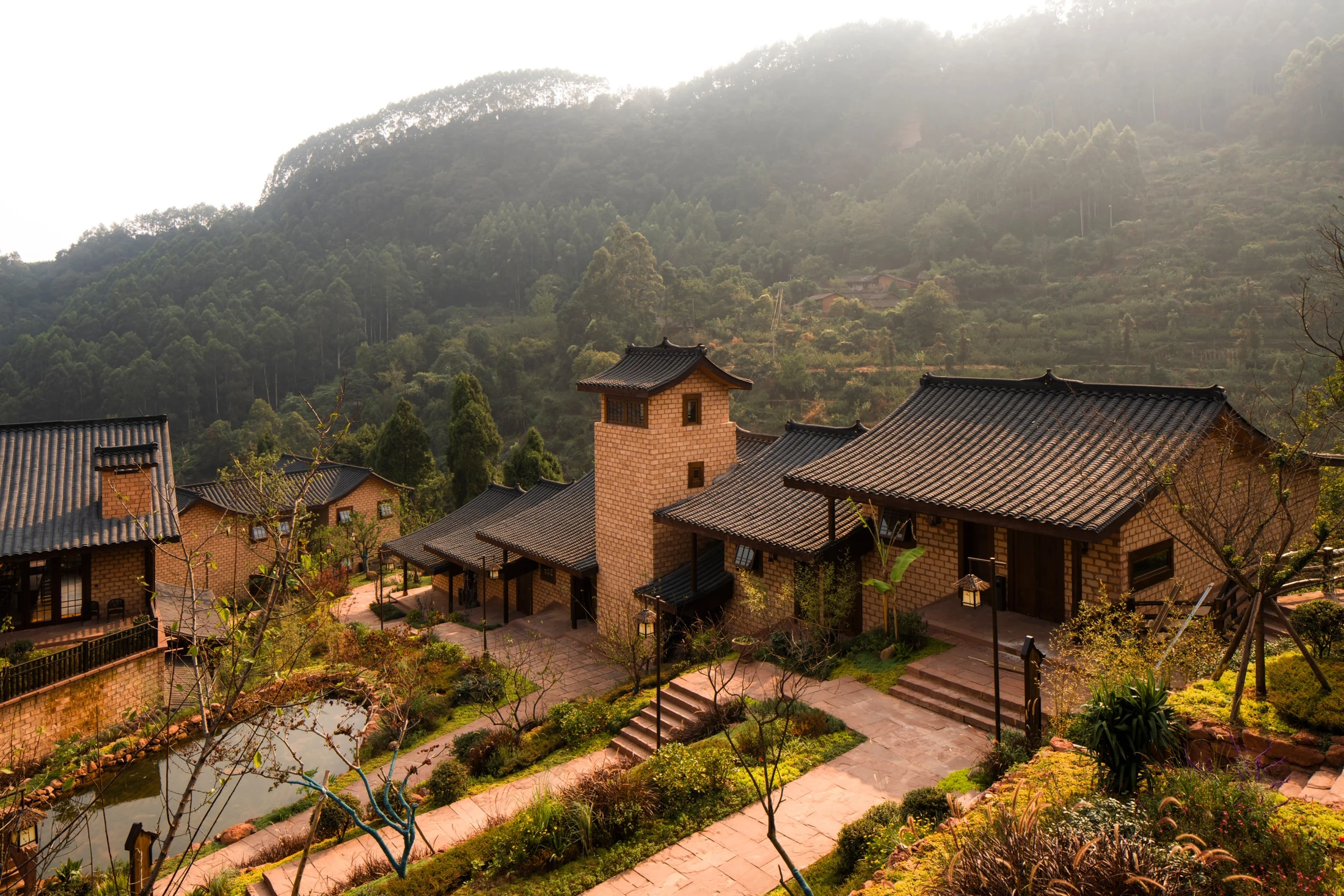

The buildings form a cluster of smaller volumes along the hillside. Their scale extends that of the neighbouring village and connects the guesthouses with the existing settlement.

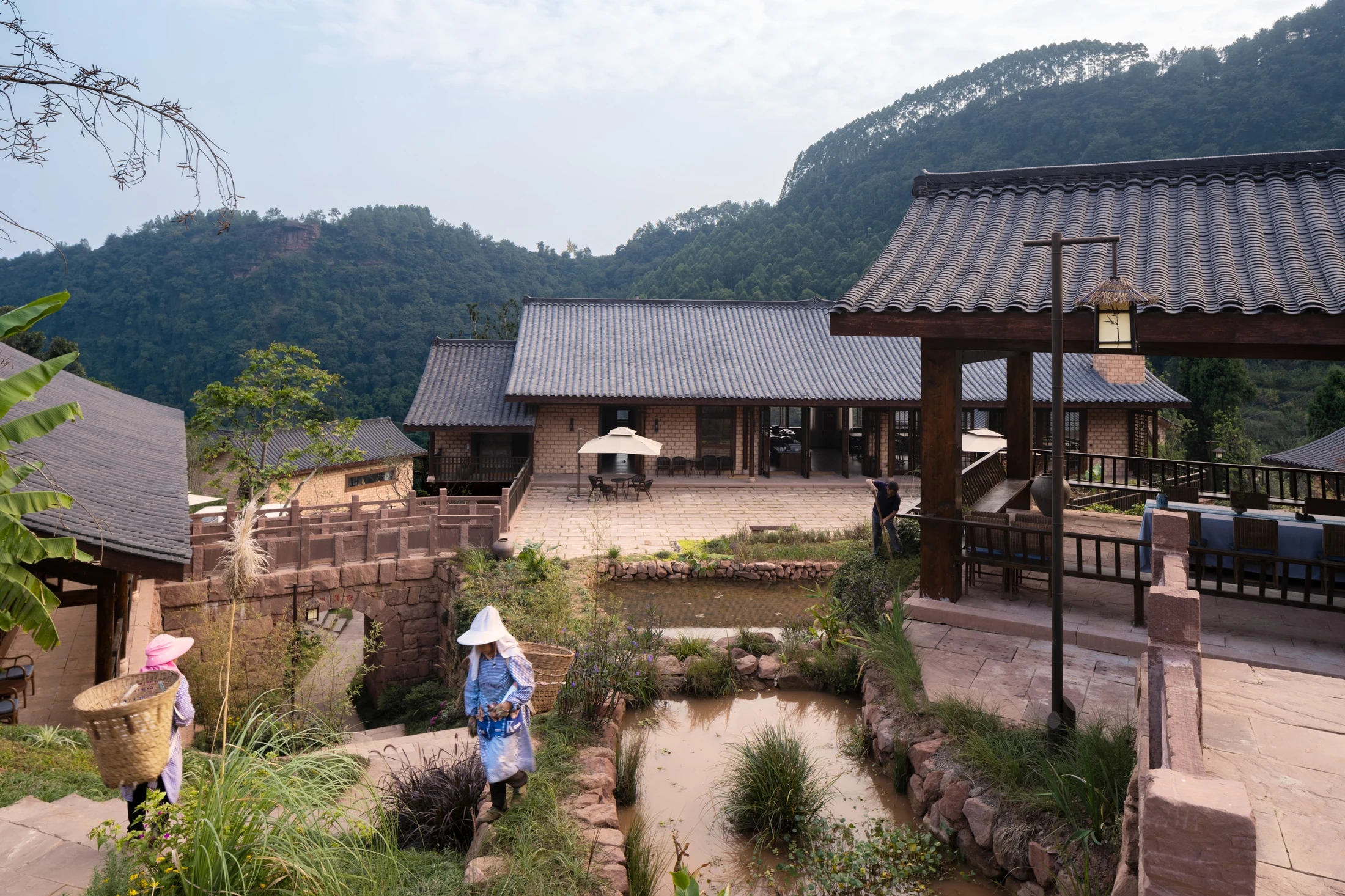

Courtyards and paths connect the buildings within the landscape. Local earth bricks link their construction with the work of residents who helped produce them.
Local materials & collaboration
Local residents took part in producing the earth bricks.
The earth bricks form part of a hybrid wall assembly, connecting local material choices with the wider construction of the guesthouse cluster.
People & process
Residents participated in producing the earth bricks used in the guesthouse cluster. Local sourcing and participation connect the material with the people involved in construction.
2023 studio announcement: a rural training baseMaterial & construction

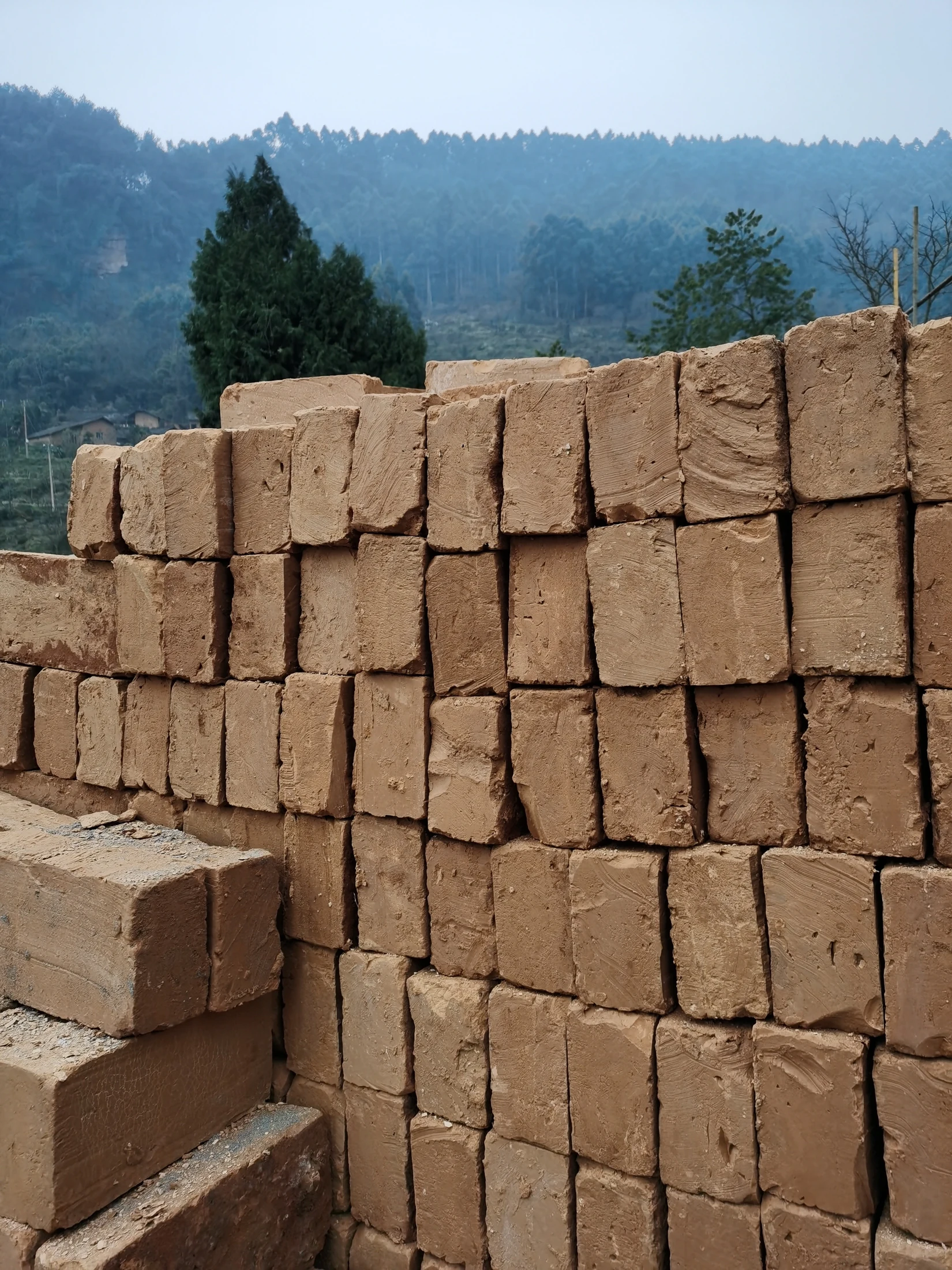

Earth bricks are used within a hybrid wall assembly. The close view records the individual shapes and textured surfaces of the stacked bricks.
Wastewater & landscape
The wastewater system combines anaerobic treatment with a horizontal subsurface-flow constructed wetland. The project diagram records the sequence from domestic wastewater collection to the outlet system and onward flow into the local pipe network.

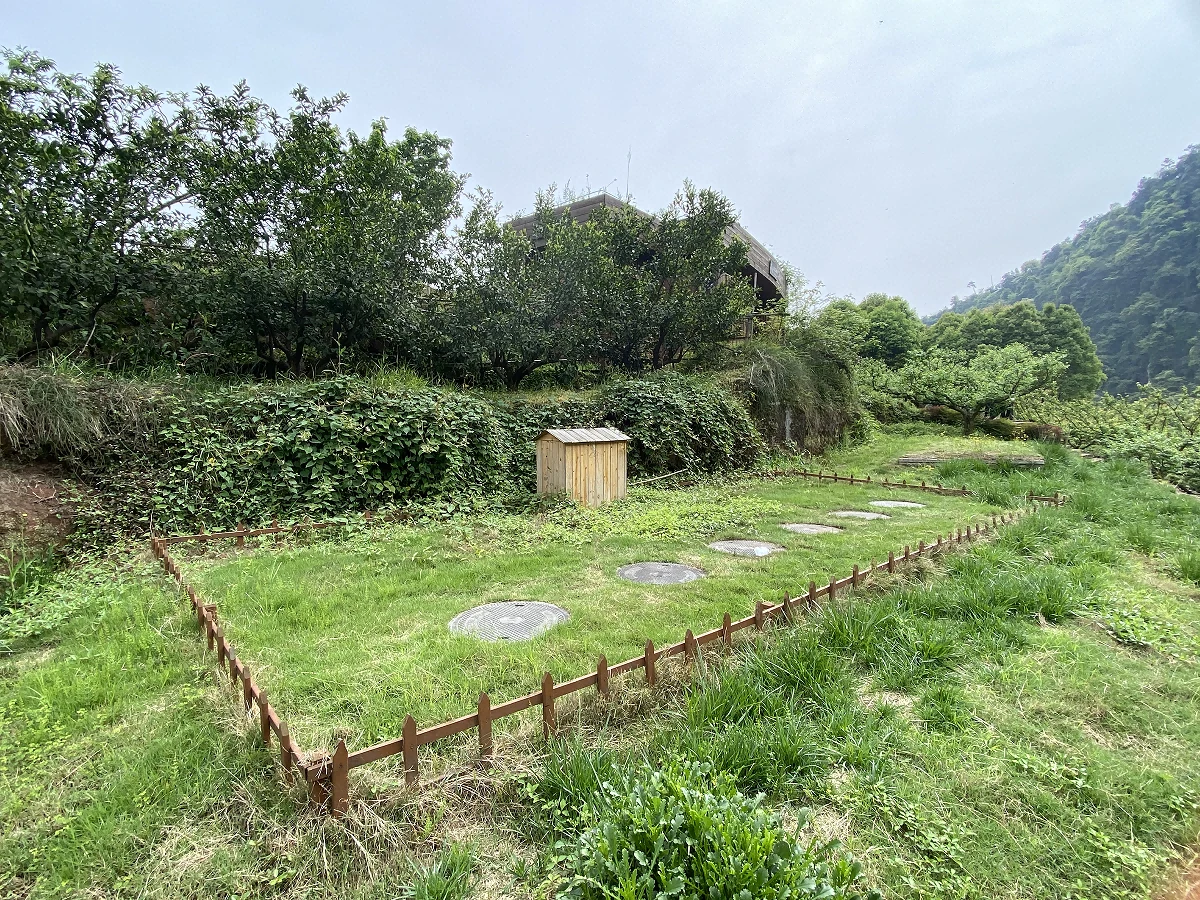

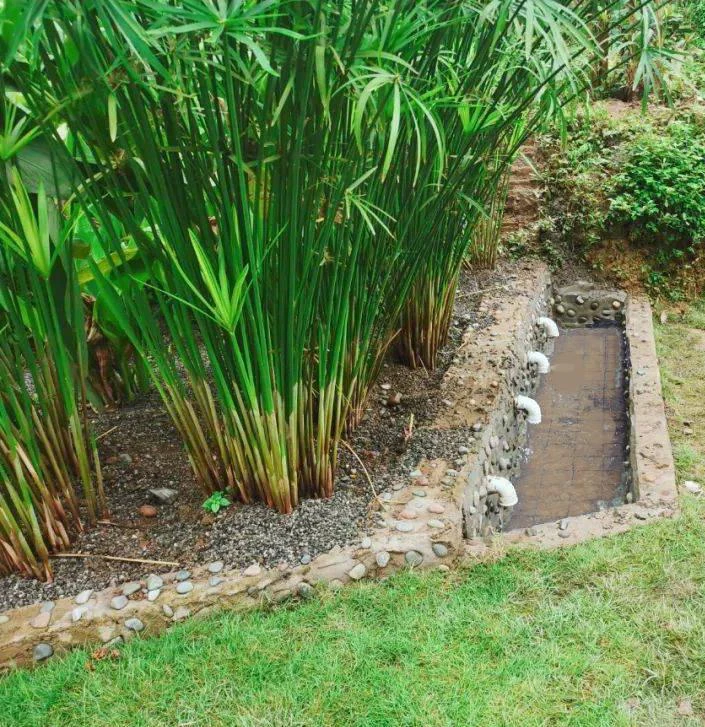

Site photographs connect the diagram with the treatment area, planted wetland and outlet collection channel.
System sequence
English sequence based on the project diagram
Domestic wastewater
With screen
Horizontal subsurface flow
Ornamental-fish channel; onward flow to the local pipe network
From the project archive

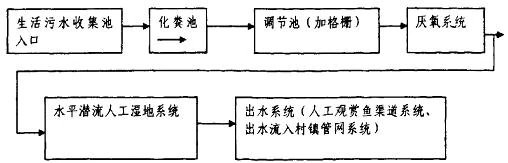

The original diagram records the system sequence, including collection, tanks, the anaerobic system, the constructed wetland and the outlet.
Showing the project diagram.
Circularity & continuity
The concept sketch introduces the relationships between buildings, paths and the hillside. In construction, earth bricks made with residents connect material choices with shared knowledge. Alongside this work, anaerobic treatment and a constructed wetland address wastewater within the landscape.
Project credits
Photography: Arch-Exist and Weibing Liu. Additional images: studio project archive. System sequence transcribed from the project diagram.
